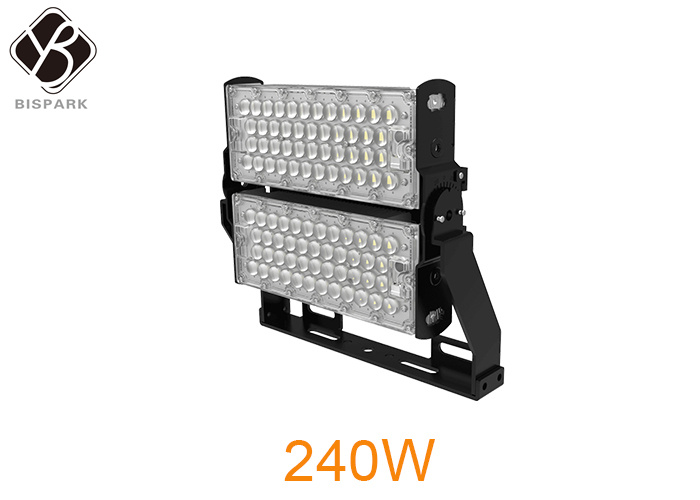

Outdoor Led Tennis Court Light 240W 165LM/W IP65 High Mast Flood Lights

Product Features & Benefits:

1. IP65 rated LED floodlighting
2. Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.
3. Rotatable modules offering maximum customization
4. Heavy duty stirrup mounting bracket
5. Multiple optics available
6. Application:Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications, etc.

GAEA series LED High Mast Lights Rotatable Module Fixtures are designed to replace 250W HPS MH to 3000W Metal Halide and HPS high mast lights, it can reduce operational and maintenance costs. Available in 100W/120W/200W/240W/320W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.

Item Number	GAEA-HM240	GAEA-HM320	GAEA-HM480	GAEA-HM720	GAEA-HM960	GAEA-HM1200/ GAEA-HM1440
Wattage	240W	320W	480W	720W	960W	1200/1440W
Lumen Output	38400lm	51200lm	76800lm	115200lm	153600lm	192000/230400lm
LED Quantity	96PCS	144pcs	192pcs	288pcs	384pcs	480/576pcs
Size(MM)	L356*W341.9*H117.6	356*473.9*117.6	650*335.4*117.6	650*467.4*117.6	650*599.4*117.6	667*596.9*133.1/ 867*596.9*133.1
LED Chip	Lumileds 5050
Luminous Efficacy	160LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	20° / 40° / 60° / 90° / 140×70°
IP Rating	IP65
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Extruded Aluminum housing+PC lens

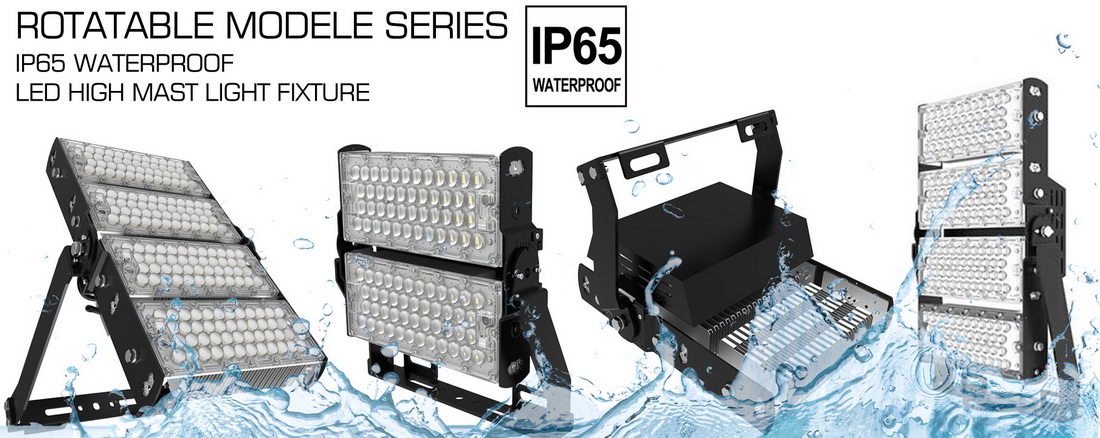

• Rotatable module
• Replaceable optical lens
• Protractor scale for easier aiming
• Lengthened heavy duty mounting bracket allowing for 360 degree rotation
• Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.

• Anti-dust design,able to be with flushable cleaning
• Waterproof IP65
• Can't be immersed into the water

• LED Outdoor High Mast and Stadium Light produces up to 223,200 Lumens. Based on the Rotatable Module Design, Mean Well Power Supply, Reliable and High Efficiency,Suitable for Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways.
• The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.
