Product Features & Benefits:
• IP65 rated LED floodlighting
• Module design,easy to adjust light angle & easy to mounting on
the pole, wall or ceiling.
• Rotatable modules offering maximum customization
• Heavy duty stirrup mounting bracket
• Multiple optics available
• With illumination equivalent to 1200 watt and 1500W metal halide
fixtures,you will enjoy an "instant-on, flicker-free" cold start,
and industry-leading High brightness LED chip,Luminous flux up to
155-160Lm/W.
• Protractor scale for easier aiming

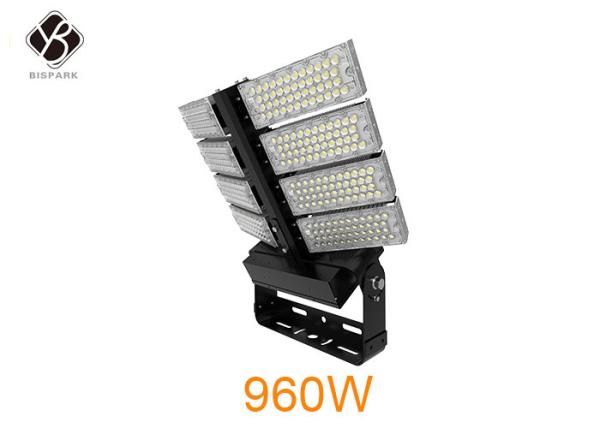

160LM/W High Power PRIMUS Series Floodlight with
600W/720W/800W/960W/1000W/1200W/1440W,which produces up to 223,200
lumens, it is designed specifically for large area and sports
applications, sports and area floodlights and LED high mast
luminaires can reduce operational and maintenance costs.
| Item Number | NL-PRIMUS-HM720 | PRIMUS-HM960 | PRIMUS-HM1200 | PRIMUS-HM1440 |
| Wattage | 720W | 960W | 1200W | 1440W |
| Lumen Output | 115200lm | 153600lm | 192000lm | 230400lm |
| LED Quantity | 276PCS | 368pcs | 460pcs | 552pcs |
| Size(MM) | L694*W268*H723 | 694*268*855 | 694*268*987 | 694*268*1119 |
| LED Chip | Lumileds 5050 |
| Luminous Efficacy | 160LM/W |
| CCT | 2700K-6700K |
| CRI | ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K) |
| Beam Angle | 20° / 40° / 60° / 90° / 140×100° |
| IP Rating | IP65 |
| Working Temperature | -35℃ to +55℃ |
| Input Voltage | AC100-277V/347V/480V, 50/60Hz, ＞0.92 |
| Warranty | 7 years |
| Lifespan | ＞50,000hrs |
| Material | Extruded Aluminum housing+PC lens |
1. Different Beam Angle & Power of 960w 1000w Outdoor LED Stadium Lights
LUMILES SMD 5050 LED CHIPS flood light Huniform illumination,long
life,good stable.
20° / 40° / 60° / 90° / 140×100°
720W 960W 1200W 1440W For your option
2. Waterproof IP65 of 960w 1000w Outdoor LED Stadium Lights
3. Features of 960w 1000w Outdoor LED Stadium Lights
Adjustable:
1. Rotatable module
2. Replaceable optical lens
3. Protractor scale for easier aiming
4. Lengthened heavy duty mounting bracket allowing for 360 degree
rotation
5. Salt spray resistant, corrosive resistant,processed with
dedicated treatments on the heat sink and other 6.components,these
fixtures can withstand corrosive and salt intensive environments.
4. Simple installation with adjustability of 960w 1000w Outdoor LED Stadium Lights
Bracket :Thicken bracket, adjustable different angle.
5. Application of 960w 1000w Outdoor LED Stadium Lights
Architectural lighting, area lighting, tunnel lighting, warehouses,
high mast lighting, football stadium lighting, swimming pool, car
parks, production lines, exhibition halls and etc.
