Benefits:
When choosing lighting for high bay ceilings, efficiency is
important. LED lighting uses significantly fewer Watts (W) than
conventional lighting. But that's not the only Savings you enjoy
when selecting LED lighting. Conventional bulbs have a shorter
operating lifetime compared to LED lighting. If you are using
conventional bulbs you will be purchasing up to four times as many
bulbs or fixtures compared to a single LED replacement with a long
operating lifetime.
Buying and using conventional bulbs and fixtures also means that
you incur three times more maintenance as well as replacement costs
compared to LED lighting. Just think of the maintenance costs
incurred getting to those hard to reach locations. LED lighting is
also free of environmentally harmful Mercury as well as Halogen
chemicals. LED UFO high bay light fixtures allow for illumination
that is widespread and powerful.
| Item Number | NL-NYX-HB100 | NYX-HB150 | NYX-HB200 |
| Wattage | 100W | 150W | 200W |
| Lumen Output | 14500lm | 21750lm | 29000lm |
| LED Quantity | 136pcs | 208pcs | 256pcs |
| Size(MM) | φ292*151 | φ342*157 | φ382*160 |
| LED Chip | Lumileds 3030 |
| Luminous Efficacy | 145LM/W |
| CCT | 2700K-6700K |
| CRI | ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K) |
| Beam Angle | 90° /120° |
| IP Rating | IP66 |
| Working Temperature | -35℃ to +55℃ |
| Input Voltage | AC100-277V/347V/480V, 50/60Hz, ＞0.92 |
| Warranty | 5years |
| Lifespan | ＞50,000hrs |
| Material | Die-casting Aluminum housing+PC lens |

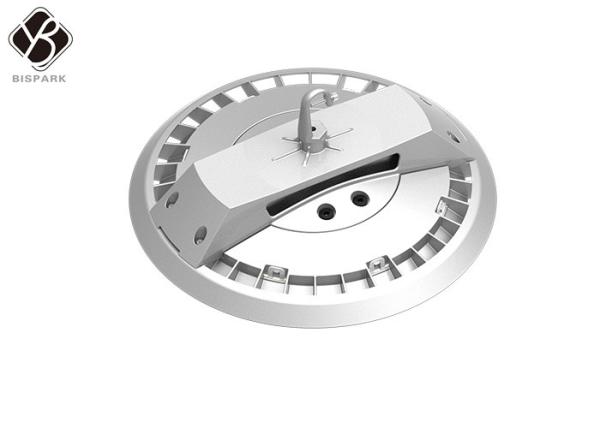

1. Patent design of 240w Led Round High Bay Light With Low UGR
- Patent desinged UFO LED high bay light,
- Special optical design to make perfect lighting performance.
- With integrated Microwave motion sensor ,more energy saving and
labor cost saving
- High Lumen efficiency, 100w 150w 200w 250w, 2700K-6500K Standard
145LM/W, Luxury option 180LM/W.UGR<19
- Meanwell driver & CREE LED Chip.
- 5 years warranty
- 1-10V, DALI Dimmable, Sensor are all available.
2. Intelligent function of 240w Led Round High Bay Light With Low UGR
- Function Demo - Dimmable control/Corridor function
- Microwave radar sensing dimmer with remote control
- Parking area lighting,Ceiling lighting,Warehouse lighting,High /
low bay lighting.
1. When using ON/OFF button, the rest setting bottons don't work.
2. Press "Auto Mode"or "Reset" buttons before setting functions
Detection Range,Hold time, Daylight sensor, Standby period and
Standby dimming level.
3. Press Start and Memory button to change and save settings in any
mode.
4. When using the remote control, light flickers to show
instruction received.
5. Every change will be automatically saved.
3. Dimension of 240w Led Round High Bay Light With Low UGR
4. Application of 240w Led Round High Bay Light With Low UGR
UFO LED High bay Lights Suitable for various lighting situation: workshop, factory, garden, warehouse, highway toll stations, gas
stations, supermarkets, exhibition halls, stadiums and other
lighting places......
Warehouses,Factory ,Industrial Area ,Work shop ,Manufacturing
facilities,Storage Areas,Grocery stores,Garage
