LED Stadium Sports Light Fixtures are designed to replace 400W to
2000W Metal Halide and HPS stadium lights. Supply perfect 500-1800W
LED stadium Lights high efficiency lighting solution for any sport
application.
CHAOS-series
LED Sports Floodlighting 500W-1800W
High performance lighting ideal for sports fields and stadiums,Each
module can be adjustable with the marking scale to adjust the angle
accurately,which help achieve the perfect uniformity illumination.
• Unique quality of light with flickerfree operation suitable for
HDTV broadcasting and Super Slow Motion
• Flexible optical system optimising lighting distributions for
best in class results
• Compact and low weight for minimal structural costs
• Fully controllable solution enabling instant lighting, stepped
illumination levels and event lighting with dynamic lighting
scenarios
| Item Number | NL-CHAOS-HM500 | CHAOS-HM600 | CHAOS-HM1000 | CHAOS-HM1200 | CHAOS-HM1500 | CHAOS-HM1800 |
| Wattage | 500W | 600W | 1000W | 1200W | 1500W | 1800 |
| Lumen Output | 80,000 lm | 96,000 lm | 160,000 lm | 192,000 lm | 240,000 lm | 287,000 lm |
| LED Quantity | 1200pcs | 1200pcs | 2400pcs | 2400pcs | 3600pcs | 3600pcs |
| Size(MM) | L462*W637*H134 | 462*637*134 | 869*678*152 | 869*678*152 | 1267*678*152 | 1267*678*152 |
| LED Chip | Lumileds 3030 / CREE XTE 3535 |
| Luminous Efficacy | 160LM/W |
| CCT | 2700K-6700K |
| CRI | ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K) |
| Beam Angle | 7°/ 15° /30° / 60° / 90° / 120°/ T2M (70*155°) / T3M (80*155°) |
| IP Rating | IP67 |
| Working Temperature | -35℃ to +55℃ |
| Input Voltage | AC100-277V/347V/480V, 50/60Hz, ＞0.92 |
| Warranty | 7 years |
| Lifespan | ＞60,000hrs |
| Material | Die-casting Aluminum housing+PC lens+ Tempered glass |
1. Features of 1000W LED Commercial LED Pole Light Fixture
- High Thickness Aluminum Heat Sink Enabling a Long Life of the Lamp
- High Efficiency Anti-glare Aluminum Shells
- Meanwell or LED Driver 10KV/20KV Surge Protection and IP67
Waterproof
- Easy-carry Handle for Convenience of Installation and
Transportation
- Two-way Installation High Strength Metal Bracket, with
Direction-adjustable High Strong Stability for High Space
- Adjustable ModuleHigh Strength Adjustable Bracket
2. LED LENS and Beam angle of 1000W LED Commercial LED Pole Light
Fixture
Adopt High Brightness Lumileds or CREE LEDs with Efficacy >160lm/W
3. LED Driver of 1000W LED Commercial LED Pole Light Fixture

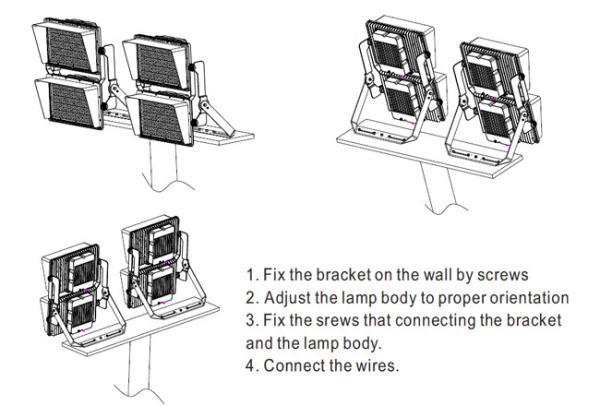

4. Installation of 1000W LED Commercial LED Pole Light Fixture
5. Applications of 1000W LED Commercial LED Pole Light Fixture
Architectural lighting, area lighting, tunnel lighting, warehouses,
high mast lighting, football stadium lighting, swimming pool, car
parks, production lines, exhibition halls and etc.
HIGH POWER LED HIGH MAST FLOODLIGHT FOR SPORTS LIGHTING
APPLICATIONS
Most manufacturers design the lighting fixtures implementing lens
and reflector technologies for desired light distribution.
These existing LED lighting methods according to the
characteristics of the light will spread to a wider area and will
also fall on the area that does not need the light and may lead to
light pollution which is inefficient in terms of energy savings.
CHAOS-series prevents light pollution and emits the light only to the target
area, CHAOS-series has advanced technology to control luminance with low power
consumption to provide a simillar level of luminous flux and also
to maximize energy savings.
