Rotatable 480VAC 1200w Stadium Led Mast Light 165LM/W

Ask Lasest Price
Brand Name :	BISPARK
Model Number :	GAEA-HM1200-A
Certification :	CE RoHS SAA UL DLC CB TUV NOM
Price :	710.5-726.5 USD
Payment Terms :	T/T, Western Union, D/A, D/P PayPal, MoneyGram
Supply Ability :	20000 PCS per Month
Delivery Time :	7-9 days for 1000pcs

Add to Cart

Product Details
Company Profile

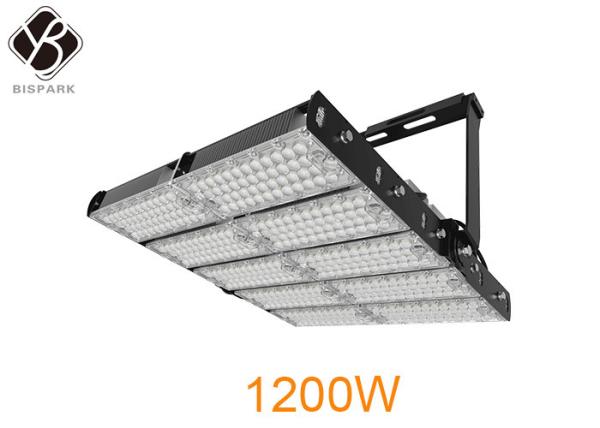

Rotatable 480VAC 1200w Stadium Led Mast Light 165LM/W

Led Flood Light Fixtures 1200w Stadium Led Light Outdoor High Mast Lighting System

Product Features & Benefits:

IP65 rated LED floodlighting
Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.
Rotatable modules offering maximum customization
Heavy duty stirrup mounting bracket
Multiple optics available
Application:Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications, etc.

GAEA series LED High Mast Lights Rotatable Module Fixtures are designed to replace 250W HPS MH to 3000W Metal Halide and HPS high mast lights, it can reduce operational and maintenance costs. Available in 100W/120W/200W/240W/300W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.

Led Flood Light Fixtures 1200w Stadium Led Light Outdoor High Mast Lighting System

Item Number	NL-GAEA-HM240	GAEA-HM320	GAEA-HM480	GAEA-HM720	GAEA-HM960	GAEA-HM1200/ GAEA-HM1440
Wattage	240W	320W	480W	720W	960W	1200/1440W
Lumen Output	38400lm	51200lm	76800lm	115200lm	153600lm	192000/230400lm
LED Quantity	96PCS	144pcs	192pcs	288pcs	384pcs	480/576pcs
Size(MM)	L356W341.9H117.6	356473.9117.6	650335.4117.6	650467.4117.6	650599.4117.6	667596.9133.1/ 867596.9133.1
LED Chip	Lumileds 5050
Luminous Efficacy	160LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	20° / 40° / 60° / 90° / 140×70°
IP Rating	IP65
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Extruded Aluminum housing+PC lens

Led Flood Light Fixtures 1200w Stadium Led Light Outdoor High Mast Lighting System

Rotatable 480VAC 1200w Stadium Led Mast Light 165LM/W

1. Light source/ LED Driver of LED High Mast Light

Rotatable 480VAC 1200w Stadium Led Mast Light 165LM/W

2. Rotatable module of LED High Mast Light

Adjustable:

Rotatable module
Replaceable optical lens
Protractor scale for easier aiming
Lengthened heavy duty mounting bracket allowing for 360 degree rotation
Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.

3. IP Rating of LED High Mast Light

Anti-dust design,able to be with flushable cleaning
Waterproof IP65:
Can't be immersed into the water

Stadium Reflector Led 1200w Led Flood Lights Outdoor High Power 1200W High Mast Lighting | Led Sports Flood Lights | LED High Mast lighting

4. Easy Installation of LED High Mast Light

Rotatable 480VAC 1200w Stadium Led Mast Light 165LM/W

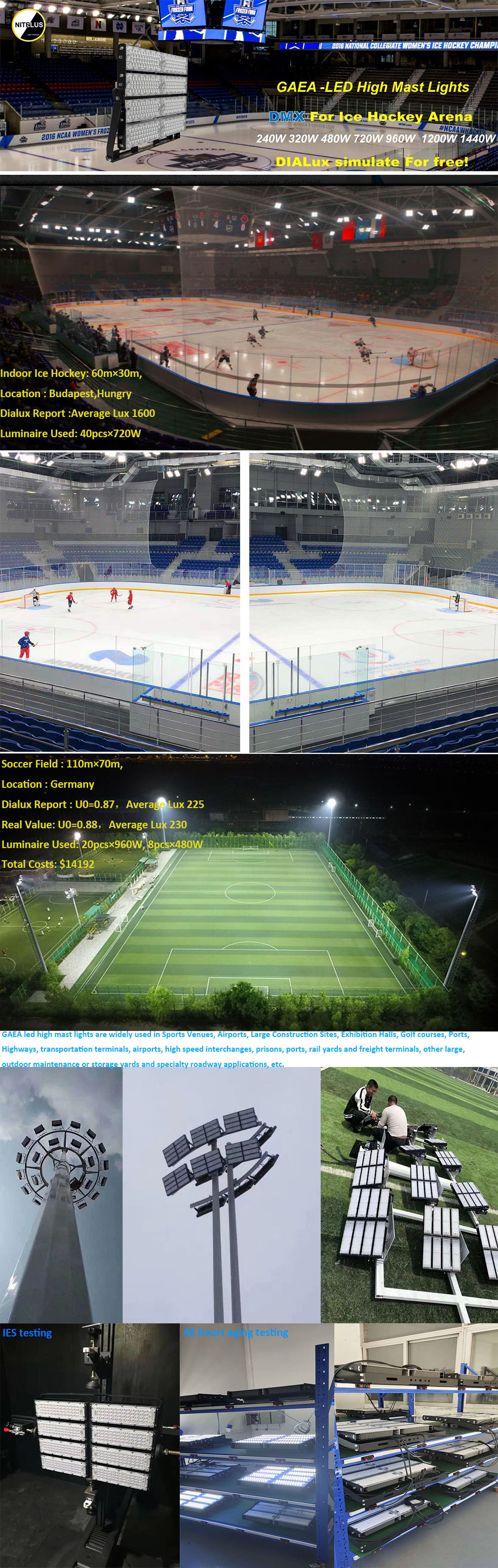

5. Application of LED High Mast Light

LED Outdoor High Mast and Stadium Light produces up to 223,200 Lumens. Based on the Rotatable Module Design, Mean Well Power Supply, Reliable and High Efficiency,Suitable for Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways.
The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.
