90000LM 500w Round 160LPW Led Tennis Court Lighting

Ask Lasest Price
Brand Name :	NITELUS
Model Number :	A
Certification :	CE RoHS SAA UL DLC CB TUV NOM
Price :	408-419 USD
Payment Terms :	T/T, Western Union, PayPal, D/P, D/A
Supply Ability :	20000 PCS per Month
Delivery Time :	3-15 work days

Add to Cart

Product Details
Company Profile

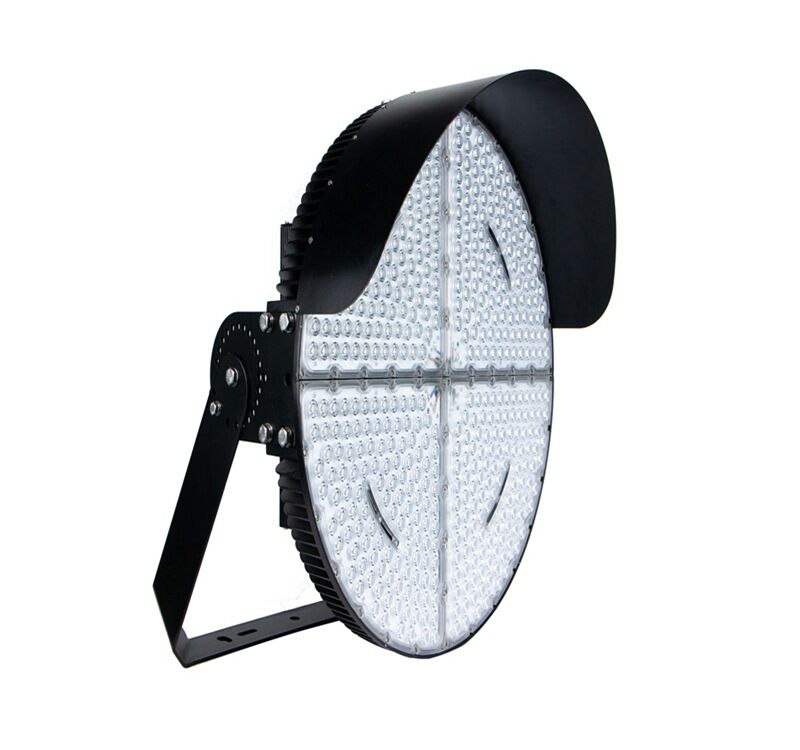

90000LM 500w Round 160LPW Led Tennis Court Lighting

500w Round Type Led Outdoor Stadium Light Tennis Court Lighting 160LPW light weight Outdoor High Mast Tennis Court Lighting 600w 500w

With the advantages below:
-300w to 1200w, different beam angle 15/20/60 degree
-SMD5050 chip, 160LM/W
-Different inbstallation bracket, round base instation/ pole installation/ U-bracket.
-Typical Application Site : Sports Venue(Ice Hockey Aarena, Soccer Field, Tennis Court, baseball/ basketball, volleyball field, etc) ,
Airports, Large Construction Sites, Golf courses, Highways, Transportation terminals, etc.

500w Round Type Led Outdoor Stadium Light Tennis Court Lighting 160LPW light weight

Specification for round led high mast lights
Item Number	APOLLO-HM300W	APOLLO-HM400W	APOLLO-HM500W	APOLLO-HM600W	APOLLO-HM1000W	APOLLO-HM1200W


Wattage	300W	400W	500W	600W	1000W	1200W
Lumen Output	48000lm	64000lm	80000lm	96000lm	160000lm	19 2000lm
LED Quantity	136PCS	136PCS	240PCS	240pcs	480pcs	480pcs
Size(MM)	φ384	φ384	φ460	φ460	φ620	φ620
LED Chip	Lumileds 5050
Luminous Efficacy	160LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	10° / 20° / 60°
IP Rating	IP67
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Die-casting Aluminum housing+PC lens

500w Round Type Led Outdoor Stadium Light Tennis Court Lighting 160LPW light weight

Light source/ LED Driver

Lmileds chips SMD 5050 Professional optical design,
Full beam angle :A variety of light distribution meets different lighting applications. It can be get luminosity to wherever you want
Mewell or Inventronics driver

90000LM 500w Round 160LPW Led Tennis Court Lighting

Following some real pictures and some projects were equipped with the round LED high mast lights:

If any projects, please do not hesitate to inquiry me. Dialux simulation or IES files all can be provided.
