Outdoor LED Sports Lighting 1000W high mast flood lights
Overview:

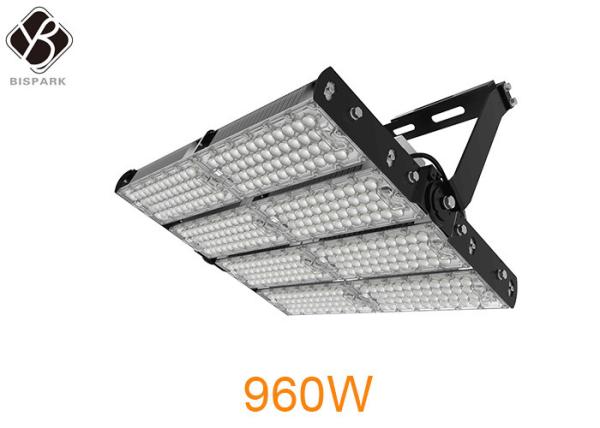

960W LED High Mast Light,Rotatable Module,160Lm/W, 148,800 Lumen,
IP65, Stadium Light,Sports Lighting,Flood Lighting,designed to
replace 2000W HPS MH high mast lights. LED high mast luminaires can
reduce operational and maintenance costs. We support high mast
light price,fixtures and system design, high mast light
Manufacturer Supplier.
LED High Mast Lights Rotatable Module Fixtures are designed to
replace 250W HPS MH to 3000W Metal Halide and HPS high mast lights.
LED high mast luminaires can reduce operational and maintenance
costs. We support high mast light price,fixtures and system design,
high mast light Manufacturer Supplier.
LED High Mast Lighting fixtures differ greatly from the typical
street or roadway lights. High Mast Lighting fixtures are regularly
mounted at 15 meters to more than 30 meters above ground level and
occasionally as high as 30 meters.
Our High Mast Lights is Aluminum housing, Up to 223,200 lumens;
Applications; High-Mast Lighting, Yard Lighting, Area & Storage
Lighting; replaces existing up to 3,000Watt Metal Halide and HPS;
Available in
100W/120W/200W/240W/300W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.
LED Outdoor High Mast and Stadium Light produces up to 223,200
Lumens. Based on the Rotatable Module Design, Mean Well Power
Supply, Reliable and High Efficiency,Suitable for Sports Venues,
Airports, Large Construction Sites, Exhibition Halls, Golf courses,
Stadium Lighting, Ports, Highways.
The applications for LED high mast lighting where the illumination
of extremely large areas such as transportation terminals,
airports, high speed interchanges, prisons, ports, rail yards and
freight terminals, other large, outdoor maintenance or storage
yards and specialty roadway applications.
Outdoor LED Sports Lighting 1000W high mast flood lights
| Item Number | NL-GAEA-HM240 | GAEA-HM320 | GAEA-HM480 | GAEA-HM720 | GAEA-HM960 | GAEA-HM1200/ GAEA-HM1440 |
| Wattage | 240W | 320W | 480W | 720W | 960W | 1200/1440W |
| Lumen Output | 38400lm | 51200lm | 76800lm | 115200lm | 153600lm | 192000/230400lm |
| LED Quantity | 96PCS | 144pcs | 192pcs | 288pcs | 384pcs | 480/576pcs |
| Size(MM) | L356*W341.9*H117.6 | 356*473.9*117.6 | 650*335.4*117.6 | 650*467.4*117.6 | 650*599.4*117.6 | 667*596.9*133.1/ 867*596.9*133.1 |
| LED Chip | Lumileds 5050 |
| Luminous Efficacy | 160LM/W |
| CCT | 2700K-6700K |
| CRI | ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K) |
| Beam Angle | 20° / 40° / 60° / 90° / 140×70° |
| IP Rating | IP65 |
| Working Temperature | -35℃ to +55℃ |
| Input Voltage | AC100-277V/347V/480V, 50/60Hz, ＞0.92 |
| Warranty | 7 years |
| Lifespan | ＞50,000hrs |
| Material | Extruded Aluminum housing+PC lens |
