IP67 SMD3030 160LM/W 10kv Led Area Security Light

    Buy cheap IP67 SMD3030 160LM/W 10kv Led Area Security Light from wholesalers

    Buy cheap IP67 SMD3030 160LM/W 10kv Led Area Security Light from wholesalers
    • Buy cheap IP67 SMD3030 160LM/W 10kv Led Area Security Light from wholesalers
    • Buy cheap IP67 SMD3030 160LM/W 10kv Led Area Security Light from wholesalers
    • Buy cheap IP67 SMD3030 160LM/W 10kv Led Area Security Light from wholesalers
    • Buy cheap IP67 SMD3030 160LM/W 10kv Led Area Security Light from wholesalers
    • Buy cheap IP67 SMD3030 160LM/W 10kv Led Area Security Light from wholesalers

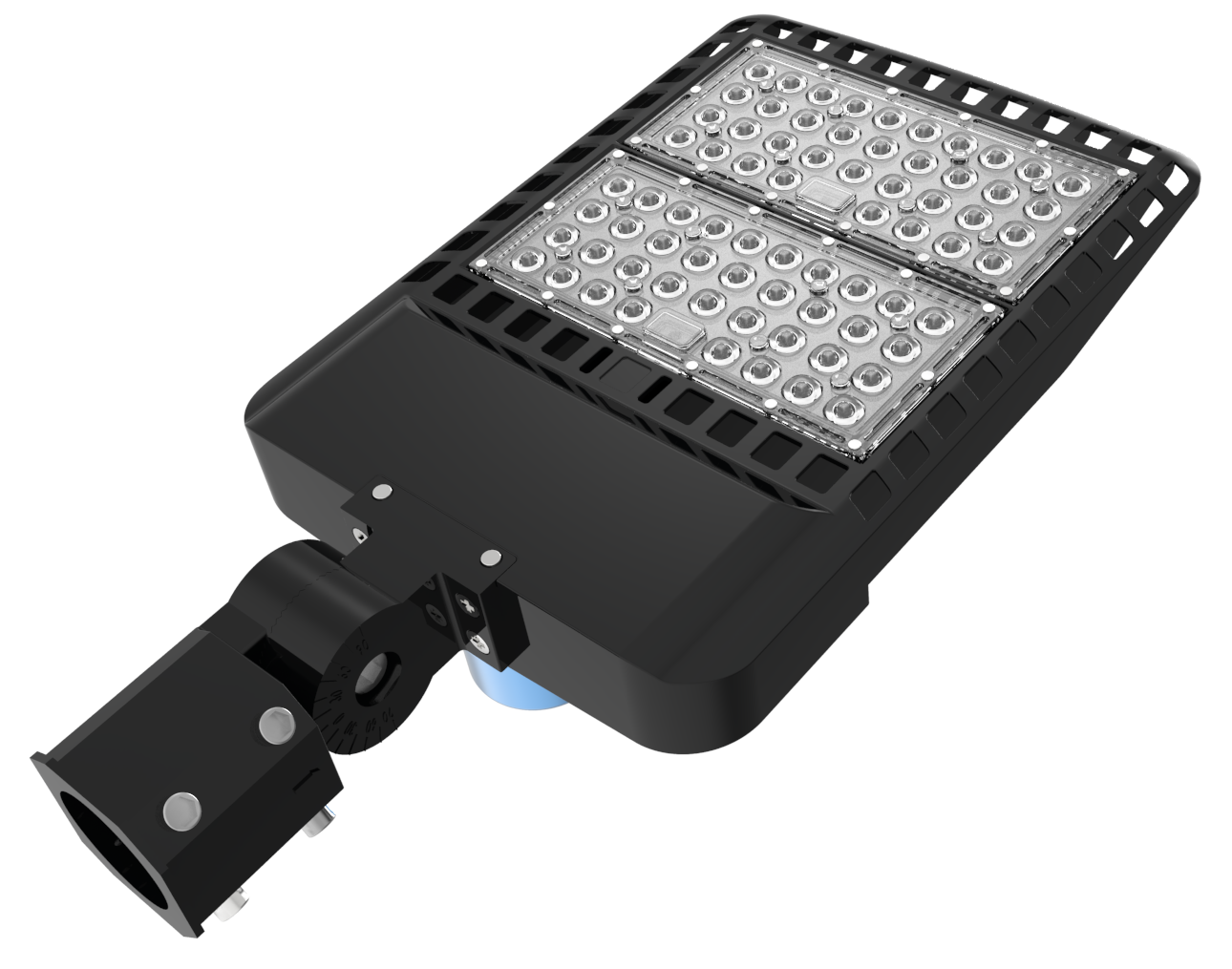

    IP67 SMD3030 160LM/W 10kv Led Area Security Light

    Ask Lasest Price
    Brand Name : BISPARK
    Model Number : ZUES
    Certification : CE RoHS SAA UL DLC CB TUV NOM
    Price : 79-83 USD
    Payment Terms : T/T, Western Union, D/A, D/P PayPal, MoneyGram
    Supply Ability : 20000 PCS per Month
    Delivery Time : 7-9 days for 1000pcs
    • Product Details
    • Company Profile

    IP67 SMD3030 160LM/W 10kv Led Area Security Light

    Led Area Security Light Parking Lot Street Lighting Led 10kv IP67
    • Led street Light 70w to 300w 160LPW :
    • 75w 100W 120W 150W 200W 240W 300W optional and wide choice of installation
    • High Efficiency, IP66, 10KV, 7 Years warranty,
    • Integrated 10KV surge protection, Integrated Power Off Switch, super smooth surface, snap type design, free-tool maintenance, labor cost saving.
    • Intelligent deisgn with LoRawan, Zigbee, photocell, motion sensor,etc
    Led Area Security Light Parking Lot Street Lighting Led 10kv IP67
    Led Area Security Light Parking Lot Street Lighting Led 10kv IP67
    Item NumberNL-ZEUS-PL75ZEUS-PL100ZEUS-PL150ZEUS-PL200ZEUS-PL240ZEUS-PL300
    Wattage75W100W150W200W240W300W
    Lumen Output12000lm16000lm24000lm32000lm38400lm48000lm
    LED Quantity96PCS144pcs192pcs252pcs324pcs432pcs
    Size(MM)L300*W320*H135300*320*135320*420*135320*420*135325*600*135325*600*135
    LED ChipLumileds 3030/5050
    Luminous Efficacy160LM/W
    CCT2700K-6700K
    CRI≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
    Beam AngleT3(80*150°) / T4(80*155°)/T5(150°)
    IP RatingIP66
    Working Temperature-35℃ to +55℃
    Input VoltageAC100-277V/347V/480V, 50/60Hz, ＞0.92
    Warranty7 years
    Lifespan＞50,000hrs
    MaterialDie-casting Aluminum housing+PC lens

    1. Features

    Led Area Security Light Parking Lot Street Lighting Led 10kv IP67

    Products Advantage:

    * Use high bright CREE/LUMILEDS SMD5050/ 3030 CHIPS, the luminous efficiency of whole lamp up to 160lm/W.

    * IP66 rated for wet location. * Photocell sensor and dimmable function for option.

    * 5 kinds of mounting methods are available for different installation.

    * Offering 5-7 years warranty, over 60,000 hours lifetime.

    * Modular design allows for separation of components for best heat dissipation.

    * Die-cast and powder coated aluminium housing for better anti-corrosion.

    * ETL/DLC/CE/RoHS/LM79/LM80/IES for quality assurance and safe operation.

    Die-cast aluminum housing

    Die-cast aluminum housing provide better heat dissipation solution, make the light be more long last, low failure, no trouble.


    Photocell Sensor
    More energy saving solution.

    On/ Off Photocell Sensor

    Twist-Lock Photocell Sensor

    Accessories

    2. Installations

    Led Area Security Light Parking Lot Street Lighting Led 10kv IP67

    4 Types Accessories

    1. Straight mounting to round pole
    2. Straight mounting to square pole
    3. Slip fitlter mounting to round pole
    4. Swivle mounting
    How to Install the LED shoebox Light?
    1. Remove power prior to installation.
    2. Loosen the screws of lamp arm.
    3. Set the lamp arm into the lamp pole and tighten the screws.
    4. Connect wiring to power supply. Brown to Line, Blue to Neutral, and Yellow or Green to Ground.
    5. Restore power to circuit to test function then aim fixture.
    Optical Lens
    High quality optical lens make the light be more efficient, stronger, more farther lighting area.

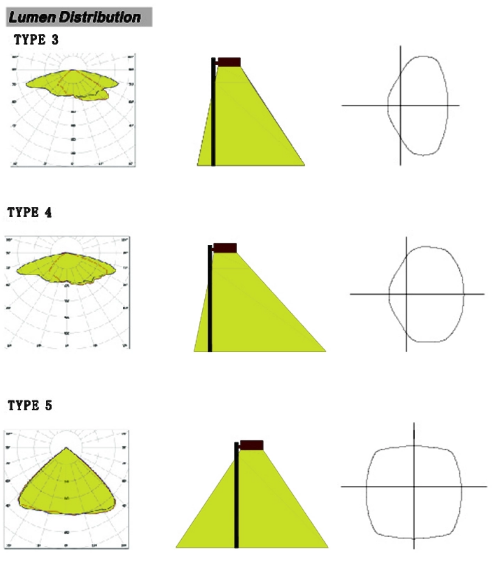

    Avaliable Lens: Type Ⅲ, Type Ⅳ, TypeⅤ
    3. Applications
    Led Area Security Light Parking Lot Street Lighting Led 10kv IP67
    ♦ Parking Lot & Structure Lights
    ♦ Roadway or Street Lights
    ♦ Highway Lights
    ♦ Pole Lights
    ♦ Area Lights
