Products Advantage for Parking Lot 100W Led Shoe Box Light Shoebox Retrofit Flood Light IK10 IP67:

• Led Area Light 70w to 300w 160LPW :

• 75w 100W 120W 150W 200W 240W 300W optional and wide choice of installation
• High Efficiency, IP66, 10KV, 7 Years warranty,
• Integrated 10KV surge protection, Integrated Power Off Switch, super smooth surface, snap type design, free-tool maintenance, labor cost saving.

• Intelligent deisgn with LoRawan, Zigbee, photocell, motion sensor,etc

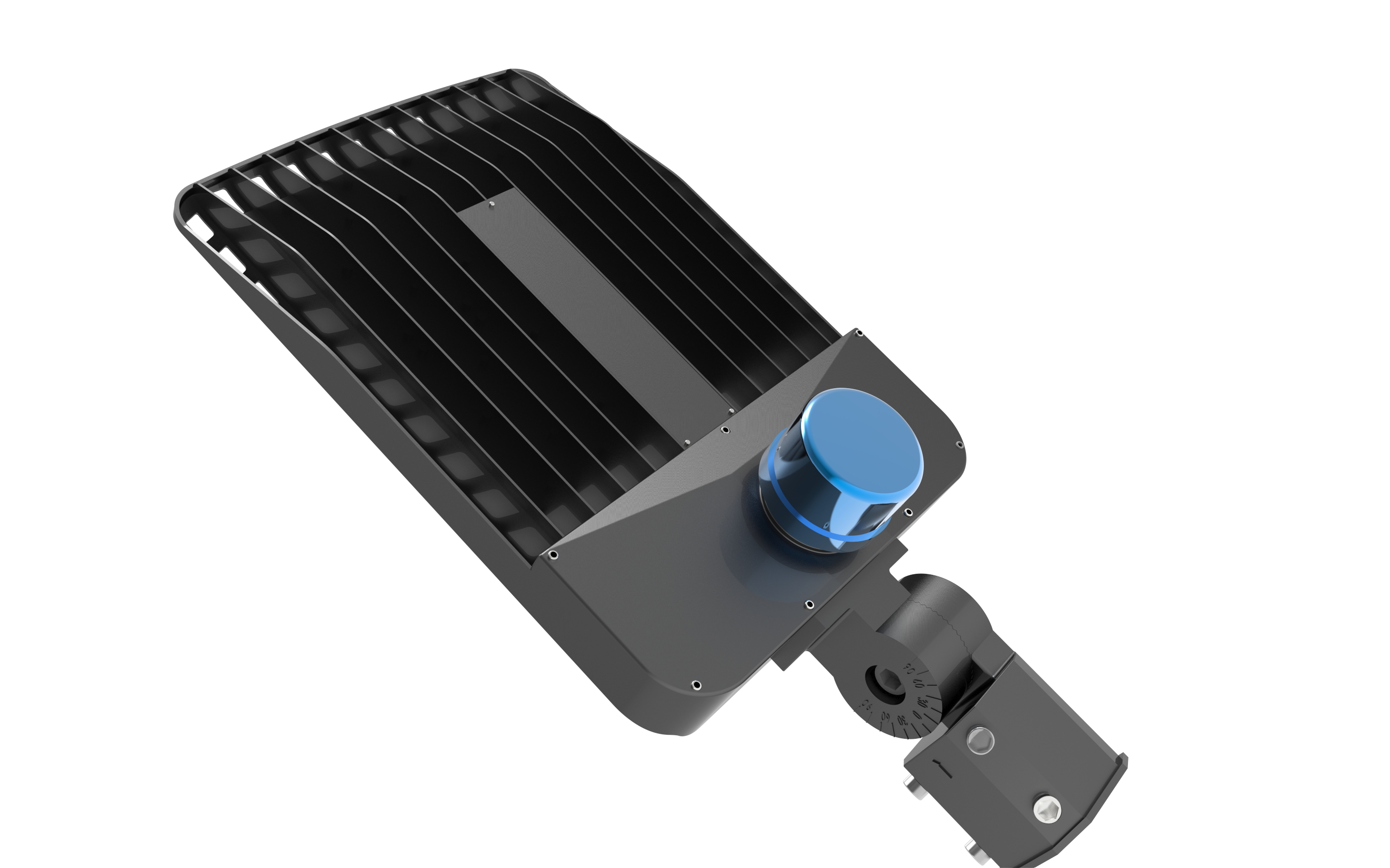

Parking Lot 100W Led Shoe Box Light Shoebox Retrofit Flood Light IK10 IP67

Item Number	NL-ZEUS-PL75	ZEUS-PL100	ZEUS-PL150	ZEUS-PL200	ZEUS-PL240	ZEUS-PL300
Wattage	75W	100W	150W	200W	240W	300W
Lumen Output	12000lm	16000lm	24000lm	32000lm	38400lm	48000lm
LED Quantity	96PCS	144pcs	192pcs	252pcs	324pcs	432pcs
Size(MM)	L300*W320*H135	300*320*135	320*420*135	320*420*135	325*600*135	325*600*135
LED Chip	Lumileds 3030/5050
Luminous Efficacy	160LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	T3(80*150°) / T4(80*155°)/T5(150°)
IP Rating	IP66
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Die-casting Aluminum housing+PC lens

1. Features of Outdoor LED Area Light

Products Advantage for Parking Lot 100W Led Shoe Box Light Shoebox Retrofit Flood Light IK10 IP67:

* Use high bright CREE/LUMILEDS SMD5050/ 3030 CHIPS, the luminous efficiency of whole lamp up to 160lm/W.

* IP66 rated for wet location. * Photocell sensor and dimmable function for option.

* 5 kinds of mounting methods are available for different installation.

* Offering 5-7 years warranty, over 60,000 hours lifetime.

* Modular design allows for separation of components for best heat dissipation.

* Die-cast and powder coated aluminium housing for better anti-corrosion.

* ETL/DLC/CE/RoHS/LM79/LM80/IES for quality assurance and safe operation.

Photocell Sensor

More energy saving solution.

On/ Off Photocell Sensor

Twist-Lock Photocell Sensor

And Led shoebox light could connect with Microwave Motion Sensor, function requiremnts of detection area, time delay
and daylight threshold can be precisely set via DIP switch.
MC605V/D is an innovative and active motion detectors with HF system 5.8GHz.
Dimming Function
3-step dimming function
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step dimming
function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to install and
cost-effective.
2-step dimming function
Also, the sensors can provide 2-step dimming function, 100 %---> low light (Never turn off). They are particularly
suitable for use in Urban roads, Industrial areas, Residential areas, Sidewalks, Parking lot, Schools, Gardens
where low light levels are maintained until motion is detected.

2. Installations

Products Advantage for Parking Lot 100W Led Shoe Box Light Shoebox Retrofit Flood Light IK10 IP67:

Slip Fitter -- 180 degree adjustable, suit for round pole

Used for Parking Area Light, LED Street Light, etc.

Straight Arm -- No adjustable, suit for wall mount, round/ square pole

Used for LED Parking Lot Light, LED Area Light, etc.

Yoke Bracket -- 180 degree adjustable

Wall Mount, used for LED Flood Light, LED Area Light, etc.

Optical Lens

Products Advantage for Parking Lot 100W Led Shoe Box Light Shoebox Retrofit Flood Light IK10 IP67:

High quality optical lens make the light be more efficient, stronger, more farther lighting area.

Avaliable Lens: Type Ⅲ, Type Ⅳ, TypeⅤ

3. Dialux design and quality control

4. Applications

Products Advantage for Parking Lot 100W Led Shoe Box Light Shoebox Retrofit Flood Light IK10 IP67:
