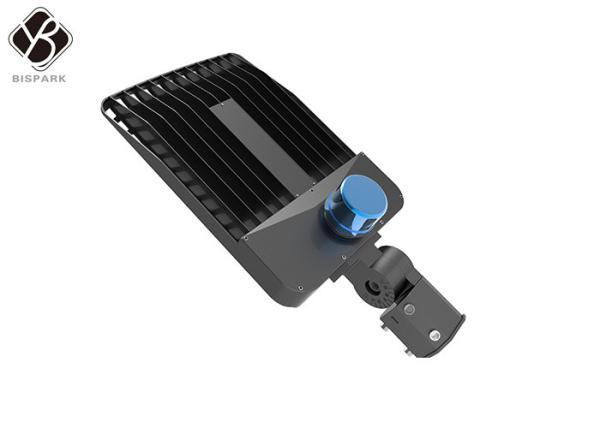

160LPW IP67 IK10 150w 160LM/W led street flood light

Ask Lasest Price
Brand Name :	BISPARK
Model Number :	ZUES
Certification :	CE RoHS SAA UL DLC CB TUV NOM
Price :	79-83 USD
Payment Terms :	T/T, Western Union, D/A, D/P PayPal, MoneyGram
Supply Ability :	20000 PCS per Month
Delivery Time :	7-9 days for 1000pcs

Add to Cart

Product Details
Company Profile

160LPW IP67 IK10 150w 160LM/W led street flood light

New Designed 150w led street light

Led Area Light 70w to 300w 160LPW :

75w 100W 120W 150W 200W 240W 300W optional and wide choice of installation
High Efficiency, IP66, 10KV, 7 Years warranty,
Integrated 10KV surge protection, Integrated Power Off Switch, super smooth surface, snap type design, free-tool maintenance, labor cost saving.

Intelligent deisgn with LoRawan, Zigbee, photocell, motion sensor,etc

New Designed 150w led street light 10kv IP67

New Designed 150w led street light

Item Number	NL-ZEUS-PL75	ZEUS-PL100	ZEUS-PL150	ZEUS-PL200	ZEUS-PL240	ZEUS-PL300
Wattage	75W	100W	150W	200W	240W	300W
Lumen Output	12000lm	16000lm	24000lm	32000lm	38400lm	48000lm
LED Quantity	96PCS	144pcs	192pcs	252pcs	324pcs	432pcs
Size(MM)	L300W320H135	300320135	320420135	320420135	325600135	325600135
LED Chip	Lumileds 3030/5050
Luminous Efficacy	160LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	T3(80150°) / T4(80155°)/T5(150°)
IP Rating	IP66
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Die-casting Aluminum housing+PC lens

1. Features

New Designed 150w led street light

Products Advantage:

* Use high bright CREE/LUMILEDS SMD5050/ 3030 CHIPS, the luminous efficiency of whole lamp up to 160lm/W.

* IP66 rated for wet location. * Photocell sensor and dimmable function for option.

* 5 kinds of mounting methods are available for different installation.

* Offering 5-7 years warranty, over 60,000 hours lifetime.

* Modular design allows for separation of components for best heat dissipation.

* Die-cast and powder coated aluminium housing for better anti-corrosion.

* ETL/DLC/CE/RoHS/LM79/LM80/IES for quality assurance and safe operation.

Die-cast aluminum housing

Die-cast aluminum housing provide better heat dissipation solution, make the light be more long last, low failure, no trouble.

Photocell Sensor

More energy saving solution.

On/ Off Photocell Sensor

Twist-Lock Photocell Sensor

2. Installations

New Designed 150w led street light

Slip Fitter -- 180 degree adjustable, suit for round pole

Used for Parking Area Light, LED Street Light, etc.

Straight Arm -- No adjustable, suit for wall mount, round/ square pole

Used for LED Parking Lot Light, LED Area Light, etc.

Yoke Bracket -- 180 degree adjustable

Wall Mount, used for LED Flood Light, LED Area Light, etc.

Optical Lens

High quality optical lens make the light be more efficient, stronger, more farther lighting area.

Avaliable Lens: Type Ⅲ, Type Ⅳ, TypeⅤ

3. Packing & Shipping

New Designed 150w led street light

Before package: Over 12 hours aging test.

Package:
1. Pack the led street light in a pe bag
2. Put pearl cotton into a carton
3. Put the led street light into the carton and fix it with pearl cotton.

4. FAQ

New Designed 150w led street light

1. What is the warranty for the lights?

For the lights, we have 5 years warranty. If any quality problems on our side occurred in this period, we'll take on the shipping cost and replacement.

2. You are factory or trading company?

We are factory directly specialized in LED Lighting. We offer reliable quality, competitive price and short lead time for our clients.

3. What is your sample offering time?

Within 24 hours for the samples in our stock, 1-3 days for new sample making.

4. How is your quality control?

We have strict QC process and all the lights will be 100% 48-72 hours testing before shipping.

5. What is your payment terms?

30% as deposit for prodeuction, remaining payment will be paid before delivery.

6. What is your payment way?

T/T, PayPal and Western Union are preferred, cash, L/C, D/P or other forms of payment is also accepted.

7. What is your shipping way?

By express(DHL, FEDEX, UPS, TNT, EMS, etc.), air, sea.
