Led Parking Lot Lighting Retrofit Shoebox Style Head Retrofit

Led Parking Lot Lighting Retrofit Shoebox Style Head Retrofit

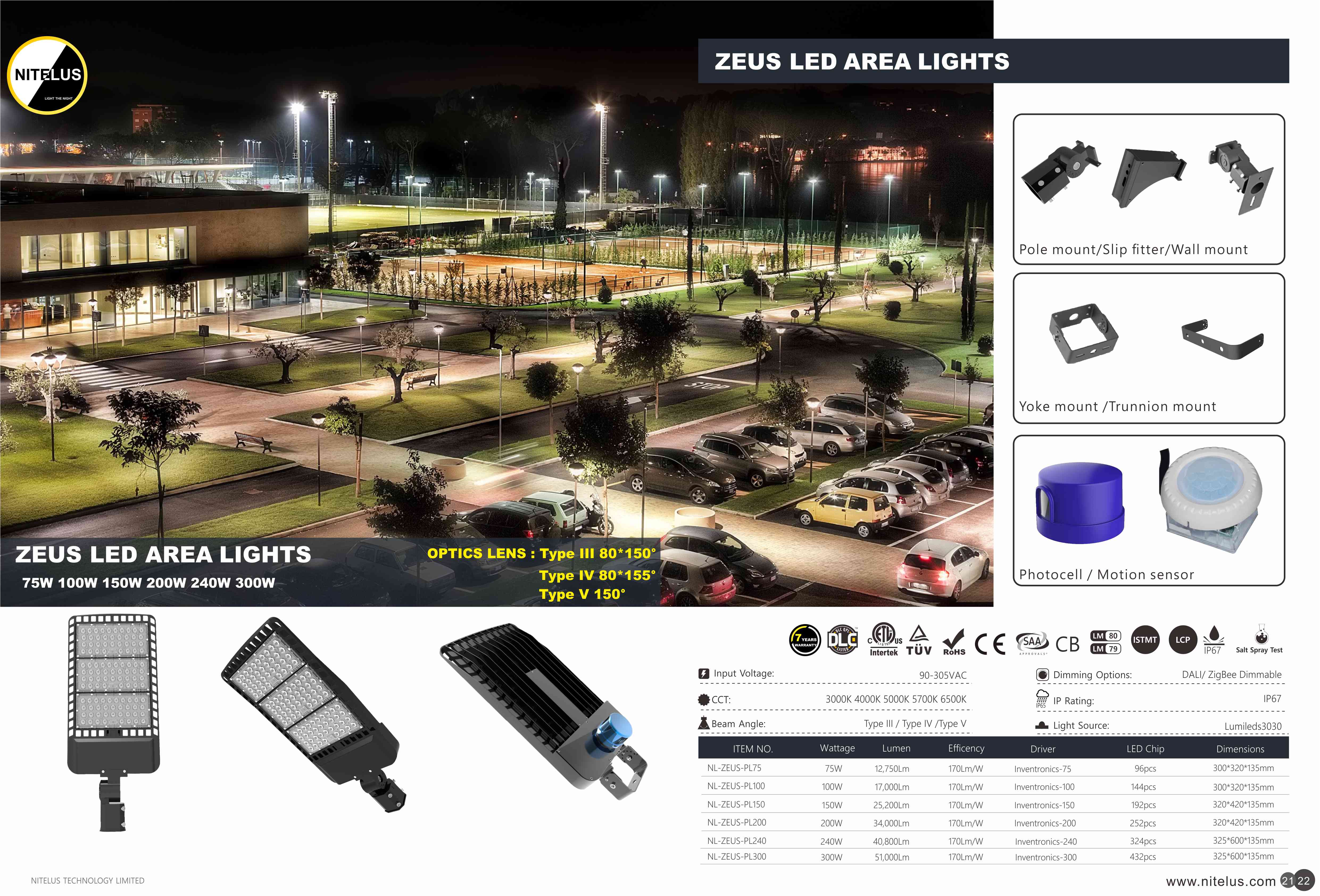

Item Number	NL-ZEUS-PL75	ZEUS-PL100	ZEUS-PL150	ZEUS-PL200	ZEUS-PL240	ZEUS-PL300
Wattage	75W	100W	150W	200W	240W	300W
Lumen Output	12000lm	16000lm	24000lm	32000lm	38400lm	48000lm
LED Quantity	96PCS	144pcs	192pcs	252pcs	324pcs	432pcs
Size(MM)	L300*W320*H135	300*320*135	320*420*135	320*420*135	325*600*135	325*600*135
LED Chip	Lumileds 3030/5050
Luminous Efficacy	160LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	T3(80*150°) / T4(80*155°)/T5(150°)
IP Rating	IP66
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Die-casting Aluminum housing+PC lens

1. Features of Outdoor LED Area Light

Led Parking Lot Lighting Retrofit Shoebox Style Head Retrofit:

* Use high bright CREE/LUMILEDS SMD5050/ 3030 CHIPS, the luminous efficiency of whole lamp up to 160lm/W.

* IP66 rated for wet location. * Photocell sensor and dimmable function for option.

* 5 kinds of mounting methods are available for different installation.

* Offering 5-7 years warranty, over 60,000 hours lifetime.

* Modular design allows for separation of components for best heat dissipation.

* Die-cast and powder coated aluminium housing for better anti-corrosion.

* ETL/DLC/CE/RoHS/LM79/LM80/IES for quality assurance and safe operation.

Die-cast aluminum housing

Die-cast aluminum housing provide better heat dissipation solution, make the light be more long last, low failure, no trouble.

Photocell Sensor

More energy saving solution.

On/ Off Photocell Sensor

Twist-Lock Photocell Sensor

2. Installations

Led Parking Lot Lighting Retrofit Shoebox Style Head Retrofit

Slip Fitter -- 180 degree adjustable, suit for round pole

Used for Parking Area Light, LED Street Light, etc.

Straight Arm -- No adjustable, suit for wall mount, round/ square pole

Used for LED Parking Lot Light, LED Area Light, etc.

Yoke Bracket -- 180 degree adjustable

Wall Mount, used for LED Flood Light, LED Area Light, etc.

Optical Lens

Led Parking Lot Lighting Retrofit Shoebox Style Head Retrofit:

High quality optical lens make the light be more efficient, stronger, more farther lighting area.

Avaliable Lens: Type Ⅲ, Type Ⅳ, TypeⅤ

3. Testing equipments

4. Applications

Led Parking Lot Lighting Retrofit Shoebox Style Head Retrofit:
