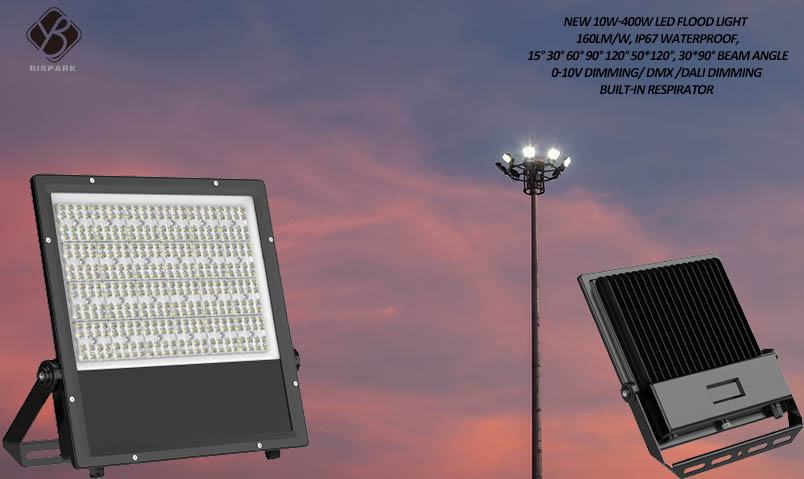

THEA-B LED Flood Light
1. 30w 50w 80w 100w 150w 180w 200w 250w 320w, 160LM/W
2. IP Rating: IP67, can be used for outdoor harsh environments
3. Thick tempered glass glass, pressure resistant, crack and high
temperature resistant
4. Symmetric 15° 30° 60° 90° 120° type II, type III, Asymmetric
50*120°, 30*90° Beam Angle
5. 0-10v dimming/ DMX /DALI dimming/ motion sensor/daylight sensor
are available
6. Built-in respirator to effectively balance the pressure and
avoid condensation
7. Widely used for billboard, parking lot, tunnel, stadium,
factory, station, warehouse, street, square, building,etc.
Led Flood Light Specification
| Model NO. | Power | Chip Brand Philips | Chip
QTY | Iuminous Flux
(lm) | Beam
Angle | IP
Degree | Lamp SIZE
(MM) | G.W(KG) | Packing SIZE
(CM) |
|
| THEA-FL30-B | 30w | Philips lumileds 3030 chips | 36 | 160lm/w | Symmetric 15° 30° 60° 90° 120° type II, type III, Asymmetric
50*120°, 30*90° Beam Angle | IP67 | 312*207*53MM | 5.0KG | 33*22*15cm,2pcs/CTN |
| THEA-FL50-B | 50w | 72 | 160lm/w | IP67 | 312*207*53MM | 5.4KG | 33*22*15cm,2pcs/CTN |
| THEA-FL75-B | 75w | 96 | 160lm/w | IP67 | 312*258*53MM | 5.8KG | 34*28*15cm,2pcs/CTN |
| THEA-FL100-B | 100W | 120 | 160lm/w | IP67 | 312*309*53MM | 3.5KG | 33*33*7cm,1pc/CTN |
| THEA-FL120-B | 120W | 160 | 160lm/w | IP67 | 312*309*53MM | 3.5KG | 33*33*7cm,1pc/CTN |
| THEA-FL150-B | 150W | 180 | 160lm/w | IP67 | 362*309*53MM | 4.0KG | 38*33*7cm,1pc/CTN |
| THEA-FL180-B | 180W | 240 | 160lm/w | IP67 | 362*309*53MM | 4.0KG | 38*33*7cm,1pc/CTN |
| THEA-FL200-B | 200W | 240 | 160lm/w | IP67 | 413*309*53MM | 5.0KG | 43*33*7cm,1pc/CTN |
| THEA-FL240-B | 240W | 320 | 160lm/w | IP67 | 413*309*53MM | 5.5KG | 43*33*7cm,1pc/CTN |
| THEA-FL320-B | 320W | 384 | 160lm/w | IP67 | 437*411*61MM | 7.5KG | 45*43*8cm,1pc/CTN |
1.THEA LED Flood Lights Sizes
2.THEA LED Flood Lights Beam Angle
Symmetric 15° 30° 60° 90° 120° type II, type III, Asymmetric
50*120°, 30*90° Beam Angle
3. THEA LED Flood Lights Application
Searching for outdoor led floodlights here the right place, it is
widely implemented by using flood light fixtures in landscape
lighting as wall washing,
wall grazing and shadowing.
- Applications for LED tunnel Light
- Outdoor lighting
- Tunnel lighting
- Gas station lighting
- Architectural lighting
- Landscape lighting
- Facade lighting
- Square, Park, Wall of buildings, Church, Hotel, Bridge, Tree,
Public area, Landscape etc.
4.THEA LED Flood Lights Installation
- Socket mounted
- Ceilling mounted
- Wall mounted
